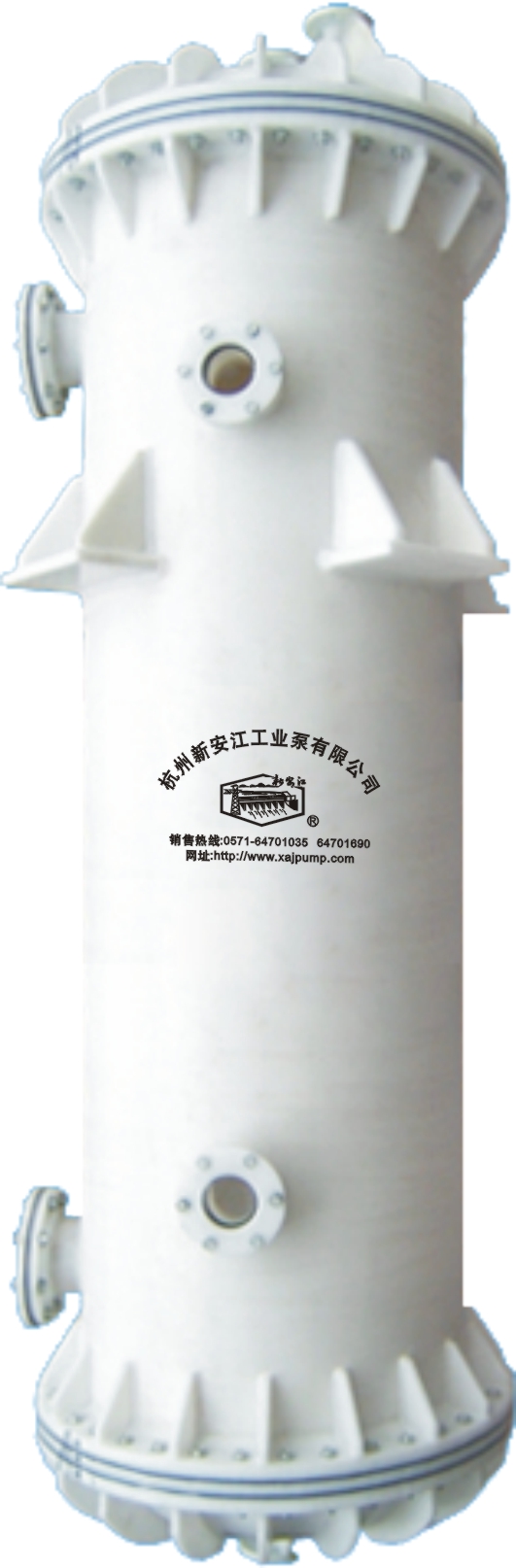

Ion exchange column purifies water by exchanging the ion of ion exchange resin with some ion of raw water and removing them as a result. The product has good physical and mechanical properties.
Applications
It is widely applied to pure water making, hard water softening, decolorizing and extraction of medicine and food, recovery of important chemical raw materials and waste water treatment in chemical, pharmaceutical, textile, plating etc.

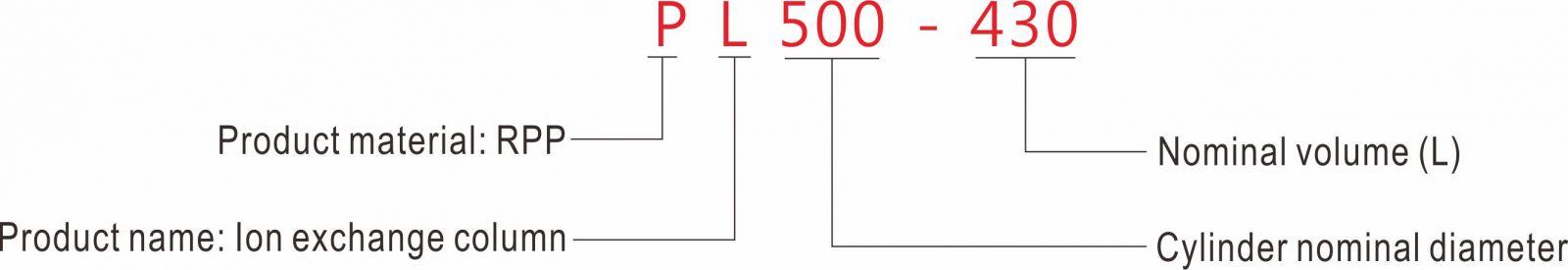

Model Specification
Applicable Scope
|
Name |
Negative, positive, single sodium bed |
Internal regenerative mixed bed |
||||||||
| Size |
φ250 |
φ315 | φ400 | φ500 | φ630 | φ250 | φ315 | φ400 | φ500 | φ630 |
|
Designed flow rate (m³/h) |
1 | 1.5 | 2.5 | 4 | 6 | 2 | 3 | 4.5 | 7 | 12 |
|
Column height |
2000 | 2000 | 2500 | 2500 | 2500 | 2000 | 2000 | 2500 | 2500 | 2500 |
|
Total height |
2330 | 2460 | 2930 | 2990 | 3080 | 2330 | 2460 | 2930 | 2990 | 3080 |
|
Water inlet |
20 | 20 | 25 | 25 | 32 | 25 | 25 | 32 | 40 | 50 |
|
Water outlet |
20 | 20 | 25 | 25 | 32 | 25 | 25 | 32 | 40 | 50 |
|
Air vent |
20 | 20 | 20 | 20 | 25 | 25 | 25 | 25 | 32 | 40 |
|
Washing opening |
25 | 25 | 32 | 32 | 40 | 32 | 32 | 40 | 40 | 50 |
|
Resin inlet |
32 | 30 | 32 | 40 | 40 | 32 | 32 | 32 | 40 | 40 |
