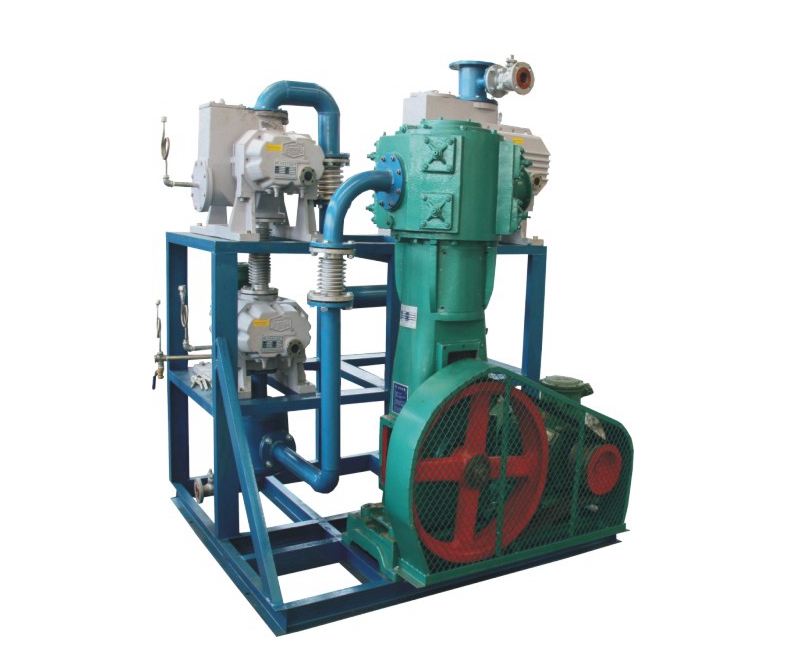

As an air suction system consisting of ZJC roots pump as main pump and oil-free vertical vacuum pump as backing pump. JZJWLW roots oil-free vertical vacuum unit set, designed for the common purpose of us and customers for environment protection, efficiency and recycling, leads the trend of vacuum industry in the new century.
The unit set could obtain high vacuum over 150Pa and maintains a small decrease of suction rate under high vacuum state. A tail gas recovery device can be mounted at the air outlet to recover the gases that can't condense or be compressed, such as cyclopentadiene, benzene, toluene, toluene, alcohols and other gases difficult to recover due to their low boiling point and easy to cause environmental pollution. The product has such features as energy saving, low noise and low repair rate.

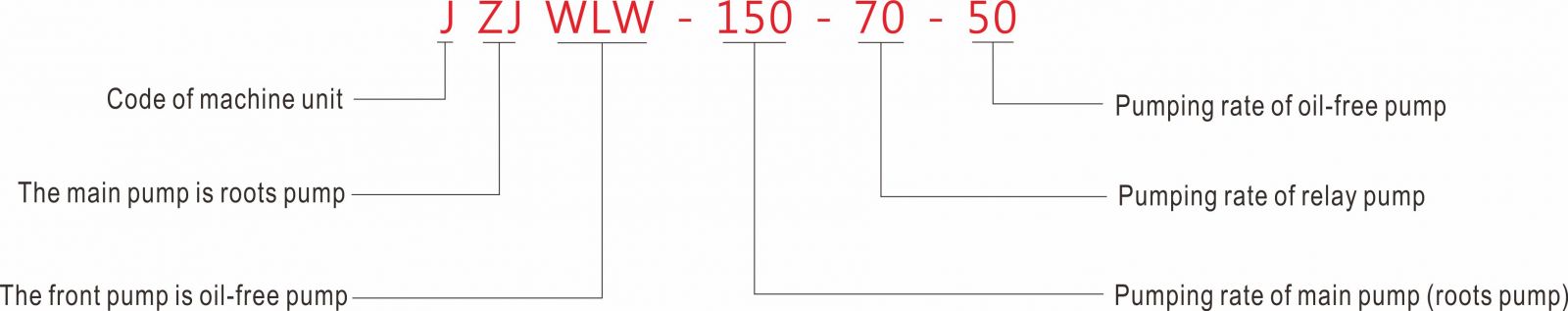

Model Specification
|
Model
|
Pumping
Speed
(L/s)
|
Ultimate
Pressure
(Pa)
|
Machine Formed Type
|
Total Power
(kw)
|
Inlet
(mm)
|
Outlet
(mm)
|
|
Main Pump
|
Medium Pump
|
Backing Pump
|
|
JZJWLW-70-50
|
70
|
150
|
ZJC-70
|
--
|
WLW-50
|
6.2
|
80
|
50
|
|
JZJWLW-150-70
|
150
|
150
|
ZJC-160
|
--
|
WLW-70
|
8.5
|
100
|
50
|
|
JZJWLW-150-100
|
150
|
150
|
ZJC-150
|
--
|
WLW-100
|
11
|
100
|
100
|
|
JZJWLW-300-150
|
300
|
150
|
ZJP-300
|
--
|
WLW-150
|
15
|
150
|
125
|
|
JZJWLW-300-200
|
300
|
150
|
ZJP-300
|
--
|
WLW-200
|
19
|
150
|
125
|
|
JZJWLW-600-300
|
600
|
150
|
ZJP-600
|
--
|
WLW-300
|
29.5
|
150
|
100
|
|
JZJWLW-150-70-50
|
150
|
25
|
ZJC-150
|
ZJC-70
|
WLW-50
|
9.2
|
100
|
50
|
|
JZJWLW-150-150-50
|
150
|
25
|
ZJC-150
|
ZJC-150
|
WLW-50
|
10
|
100
|
50
|
|
JZJWLW-300-150-100
|
300
|
25
|
ZJP-300
|
ZJC-150
|
WLW-100
|
14.5
|
150
|
100
|
|
JZJWLW-600-300-200
|
600
|
25
|
ZJP-600
|
ZJP-300
|
WLW-200
|
26.5
|
150
|
125
|
|
JZJWLW-150-70-70-50
|
150
|
1
|
ZJC-150
|
ZJC-70
ZJC-70
|
WLW-50
|
11.4
|
100
|
50
|
|
JZJWLW-300-150-150-100
|
300
|
1
|
ZJP-300
|
ZJC-150
ZJC-150
|
WLW-100
|
17.5
|
150
|
100
|
|
JZJWLW-600-300-150-100
|
600
|
1
|
ZJP-600
|
ZJP-300
ZJC-150
|
WLW-100
|
22
|
150
|
100
|
Note:
① The table only specifies standard types recommended in the industry. Any special type may be designed according to the customers' requirements.
② For detailed technical indicators of each pump, please see their operating instructions.
